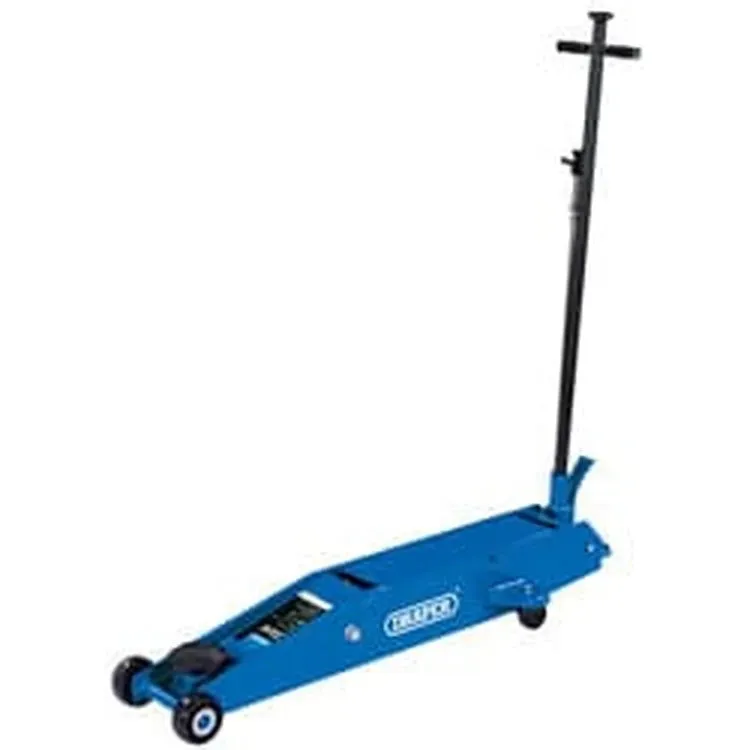

Draper Long Chassis Trolley Jack, 5 Tonne DR-03467

Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.




Capacity   5 Tonne (5,000kg)
Minimum Height   160mm
Maximum Height   560mm
Saddle Diameter   130mm
Handle Length   1,220mm
Chassis Length   1,410mm
Nett Weight   85kg

Manufactured to EN1494 Specification




5010559034673
PartNo-TJ5LR
Draper 03467
